Cross‑Discipline Clash Detection

2025-05-16

Preventing Rework Before Groundbreak

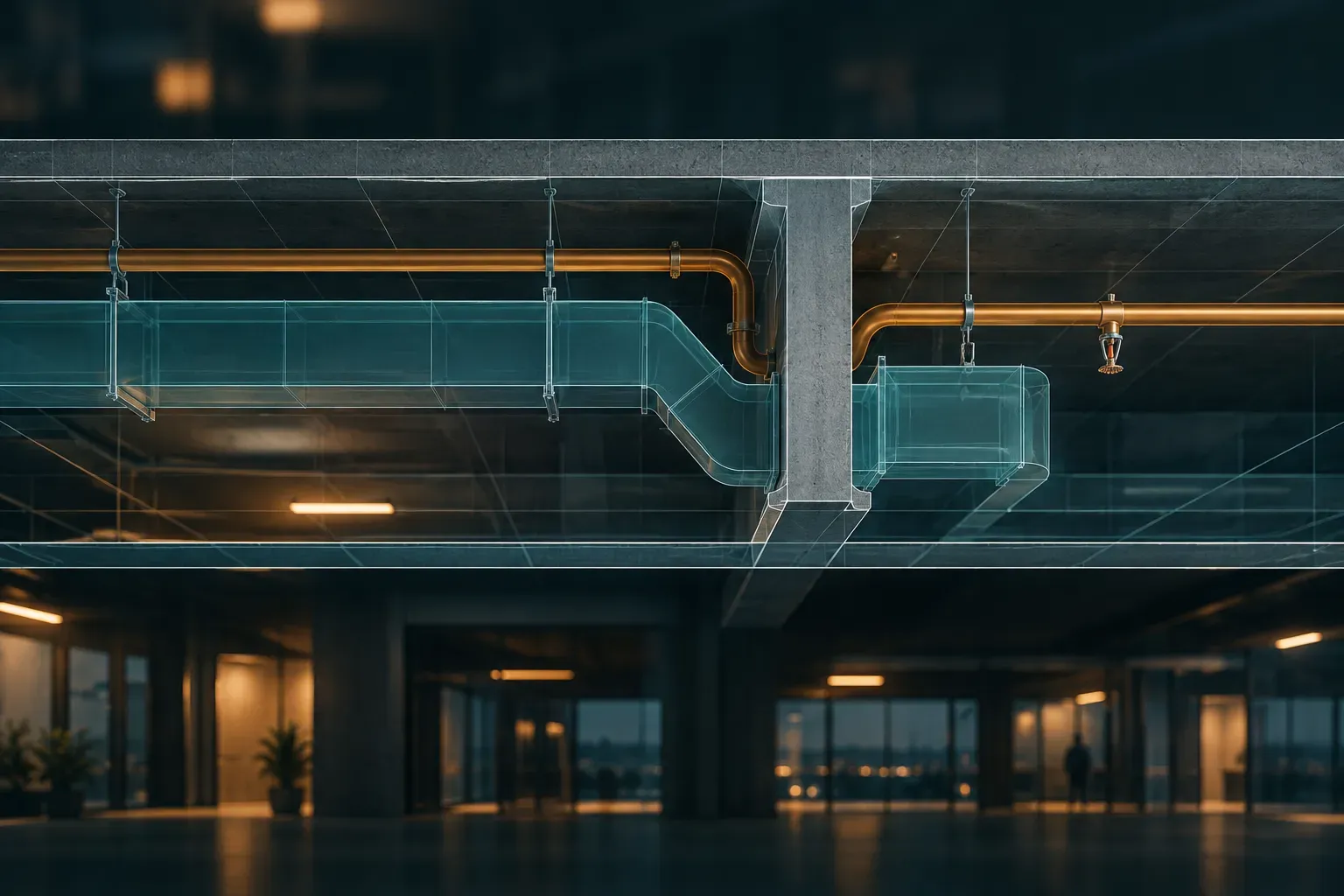

In complex building projects, misaligned MEP routing or conflicting steel framing can stall progress for weeks—sometimes months—as teams scramble to rework field installations. Traditional coordination methods, relying on occasional manual clash reviews, are no longer sufficient. The solution lies in continuous, automated clash detection that weaves architecture, structure, and MEP disciplines into a single, self‑validating ecosystem. By surfacing conflicts long before crews arrive on site, teams avoid costly rework, maintain tight schedules, and preserve profit margins. Automated clash detection begins with a federated BIM model: a central repository that aggregates geometry and metadata from every discipline. Once assembled, this master model undergoes regular clash‑analysis runs—often scheduled nightly. Each run identifies intersecting elements—such as a duct penetrating a structural beam or a conduit colliding with a plumbing stack—and classifies them by severity. High‑priority clashes, which could compromise safety or critical systems, rise to the top of the queue for immediate attention.

But detection is only half the battle; resolution workflows complete the loop. Modern platforms link each clash directly to an issue‑tracking system. When a clash is flagged, the responsible trade receives an automated notification with a 3D view of the conflict, its precise coordinates, and contextual metadata. Subcontractors can view the clash in their own discipline‑specific software, propose offsets or redesigns, and mark items as “under review.” Once resolved, the federated model updates, and the clash disappears from subsequent reports—ensuring teams focus solely on outstanding issues. By filtering clashes based on project phase, location, and severity, managers target resources where they’re needed most. Early in design development, broad sweep‑style checks catch fundamental geometric mismatches—like pipes under walls or beams intersecting architectural finishes. As the model matures, fine‑tuned rules surface system‑specific collisions: sprinkler heads clashing with lighting fixtures or cable trays infringing on ceiling tiles. This layered approach prevents noise fatigue and keeps coordination efforts productive. The benefits of rigorous clash‑detection pipelines are measurable. Projects that implement daily coordination scans report up to a 50 percent reduction in on‑site rework, according to industry surveys. Schedules recover lost days as conflicts are resolved virtually, not in the field. Cost savings accrue not only from avoiding rework labor but also from reduced materials waste when systems fit correctly the first time. Perhaps most importantly, safety risks diminish when teams don’t have to improvise solutions in live environments. Successful deployment of cross‑discipline clash detection hinges on governance and training. Establish clear clash‑severity definitions—what constitutes a “critical,” “major,” or “minor” issue—and assign accountability for each category. Define clash‑run cadences and reporting cadences to align with design milestones and procurement lead times. Invest in up‑front training so that architects, engineers, and subs understand how to interpret clash reports, propose resolutions, and update models correctly. Continuous feedback loops refine rulesets, reducing false positives and sharpening the focus on actionable conflicts. This next‑gen capability transforms clash detection from a nightly chore into an interactive guidance system, preventing errors before they enter the model. The result is faster design iterations, fewer surprises in construction, and an increasingly agile project delivery process.
